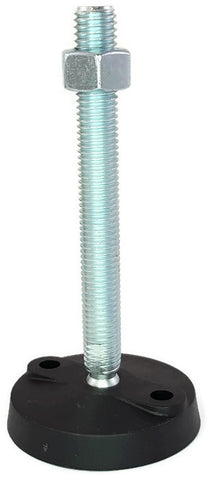

Glides 5/8" X 5" HD SWIVEL LEVELER

Item # : HWSL 58X5

5/8" X 5" THREADED SWIVEL LEVELER, 3.15" DIAMETER HD NYLON BASE, 5000LB

Made in the U.S.A., these nylon base machinery mounts are a quality and economical solution to your leveling and height adjustment needs. Threaded stud swivels 15° in all directions. It is not recommended to move the stud beyond the 15° mark, otherwise the ball end of the stud can pop out of its seat and both stud and pad will separate. Coupling nut is not recommended to use for installation. Use nut or tapped hole of 1 - 1 1/2 times the thread diameter being used. Optional pad is used for non-skid, noise and vibration reduction. Unique solid squared pattern on pad provides for a more positive non-skid surface. Pad resists many organic acids, most chemicals, alkalines, salt, water and corrosion. To insure proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount.

$20.09

Item Weight
1.0 lb
Glide Color
Black
Glide Material
Nylon
Glide Style
Levelers Nylon Base
Mounting Style
Stem
product type
Glides
Stem Type
THREADED STEM
Weight Capacity Specific
5000
Weight Category
Heavy Duty
Weight Measure
Lb
